Improve avatar uploading / resizing / compressing, remove Fomantic card module (#24653)

Fixes: #8972
Fixes: #24263

And I think it also (partially) fix #24263 (no need to convert) ,
because users could upload any supported image format if it isn't larger
than AVATAR_MAX_ORIGIN_SIZE


The main idea:

* if the uploaded file size is not larger than AVATAR_MAX_ORIGIN_SIZE,
use the origin
* if the resized size is larger than the origin, use the origin

Screenshots:

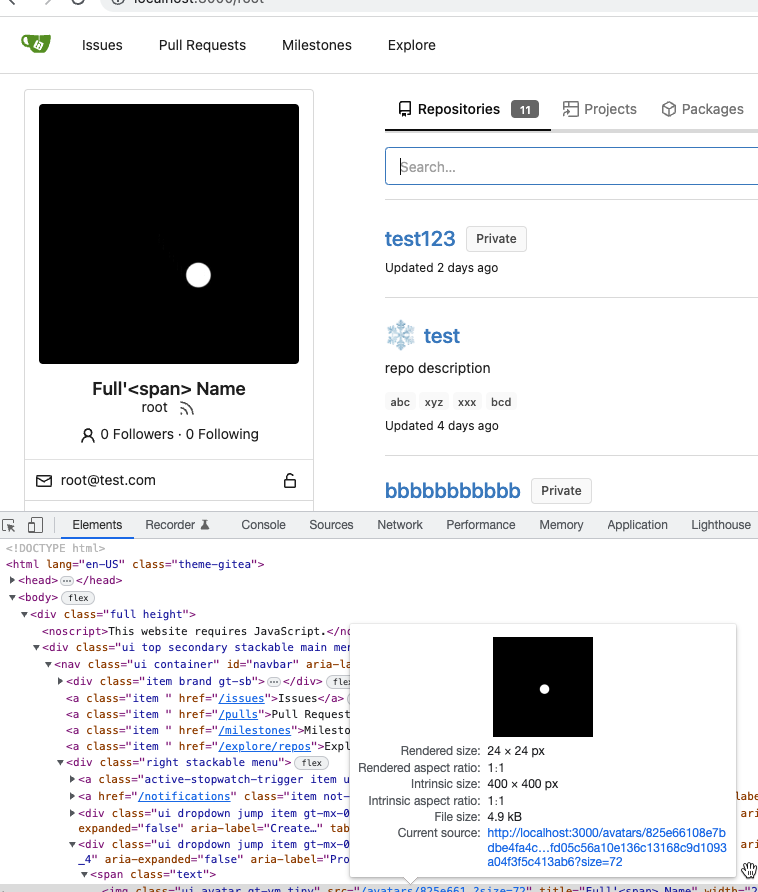

JPG:

<details>


![image](https://github.com/go-gitea/gitea/assets/2114189/70e98bb0-ecb9-4c4e-a89f-4a37d4e37f8e)

</details>

APNG:

<details>


![image](https://github.com/go-gitea/gitea/assets/2114189/9055135b-5e2d-4152-bd72-596fcb7c6671)


![image](https://github.com/go-gitea/gitea/assets/2114189/50364caf-f7f6-4241-a289-e485fe4cd582)

</details>

WebP (animated)

<details>


![image](https://github.com/go-gitea/gitea/assets/2114189/f642eb85-498a-49a5-86bf-0a7b04089ae0)

</details>

The only exception: if a WebP image is larger than MaxOriginSize and it
is animated, then current `webp` package can't decode it, so only in
this case it isn't supported. IMO no need to support such case: why a
user would upload a 1MB animated webp as avatar? crazy .....

---------

Co-authored-by: silverwind <[email protected]>

Author: wxiaoguang

custom/conf/app.example.ini

@@ -1773,16 +1773,19 @@ ROUTER = console
 ;; Max Width and Height of uploaded avatars.
 ;; This is to limit the amount of RAM used when resizing the image.
 ;AVATAR_MAX_WIDTH = 4096
-;AVATAR_MAX_HEIGHT = 3072
+;AVATAR_MAX_HEIGHT = 4096
 ;;
 ;; The multiplication factor for rendered avatar images.
 ;; Larger values result in finer rendering on HiDPI devices.
-;AVATAR_RENDERED_SIZE_FACTOR = 3
+;AVATAR_RENDERED_SIZE_FACTOR = 2
 ;;
 ;; Maximum allowed file size for uploaded avatars.
 ;; This is to limit the amount of RAM used when resizing the image.
 ;AVATAR_MAX_FILE_SIZE = 1048576
 ;;
+;; If the uploaded file is not larger than this byte size, the image will be used as is, without resizing/converting.
+;AVATAR_MAX_ORIGIN_SIZE = 262144
+;;
 ;; Chinese users can choose "duoshuo"
 ;; or a custom avatar source, like: http://cn.gravatar.com/avatar/
 ;GRAVATAR_SOURCE = gravatar

docs/content/doc/administration/config-cheat-sheet.en-us.md

@@ -792,9 +792,10 @@ and
 - `AVATAR_STORAGE_TYPE`: **default**: Storage type defined in `[storage.xxx]`. Default is `default` which will read `[storage]` if no section `[storage]` will be a type `local`.
 - `AVATAR_UPLOAD_PATH`: **data/avatars**: Path to store user avatar image files.
 - `AVATAR_MAX_WIDTH`: **4096**: Maximum avatar image width in pixels.
-- `AVATAR_MAX_HEIGHT`: **3072**: Maximum avatar image height in pixels.
-- `AVATAR_MAX_FILE_SIZE`: **1048576** (1Mb): Maximum avatar image file size in bytes.
-- `AVATAR_RENDERED_SIZE_FACTOR`: **3**: The multiplication factor for rendered avatar images. Larger values result in finer rendering on HiDPI devices.
+- `AVATAR_MAX_HEIGHT`: **4096**: Maximum avatar image height in pixels.
+- `AVATAR_MAX_FILE_SIZE`: **1048576** (1MiB): Maximum avatar image file size in bytes.
+- `AVATAR_MAX_ORIGIN_SIZE`: **262144** (256KiB): If the uploaded file is not larger than this byte size, the image will be used as is, without resizing/converting.
+- `AVATAR_RENDERED_SIZE_FACTOR`: **2**: The multiplication factor for rendered avatar images. Larger values result in finer rendering on HiDPI devices.

 - `REPOSITORY_AVATAR_STORAGE_TYPE`: **default**: Storage type defined in `[storage.xxx]`. Default is `default` which will read `[storage]` if no section `[storage]` will be a type `local`.
 - `REPOSITORY_AVATAR_UPLOAD_PATH`: **data/repo-avatars**: Path to store repository avatar image files.

docs/content/doc/administration/config-cheat-sheet.zh-cn.md

@@ -214,8 +214,8 @@ menu:
 - `AVATAR_STORAGE_TYPE`: **local**: 头像存储类型，可以为 `local` 或 `minio`，分别支持本地文件系统和 minio 兼容的API。
 - `AVATAR_UPLOAD_PATH`: **data/avatars**: 存储头像的文件系统路径。
 - `AVATAR_MAX_WIDTH`: **4096**: 头像最大宽度，单位像素。
-- `AVATAR_MAX_HEIGHT`: **3072**: 头像最大高度，单位像素。
-- `AVATAR_MAX_FILE_SIZE`: **1048576** (1Mb): 头像最大大小。
+- `AVATAR_MAX_HEIGHT`: **4096**: 头像最大高度，单位像素。
+- `AVATAR_MAX_FILE_SIZE`: **1048576** (1MiB): 头像最大大小。

 - `REPOSITORY_AVATAR_STORAGE_TYPE`: **local**: 仓库头像存储类型，可以为 `local` 或 `minio`，分别支持本地文件系统和 minio 兼容的API。
 - `REPOSITORY_AVATAR_UPLOAD_PATH`: **data/repo-avatars**: 存储仓库头像的路径。

modules/avatar/avatar.go

@@ -5,13 +5,14 @@ package avatar

 import (
 	"bytes"
+	"errors"
 	"fmt"
 	"image"
 	"image/color"
+	"image/png"

 	_ "image/gif"  // for processing gif images
 	_ "image/jpeg" // for processing jpeg images
-	_ "image/png"  // for processing png images

 	"code.gitea.io/gitea/modules/avatar/identicon"
 	"code.gitea.io/gitea/modules/setting"
@@ -22,8 +23,11 @@ import (
 	_ "golang.org/x/image/webp" // for processing webp images
 )

-// AvatarSize returns avatar's size
-const AvatarSize = 290
+// DefaultAvatarSize is the target CSS pixel size for avatar generation. It is
+// multiplied by setting.Avatar.RenderedSizeFactor and the resulting size is the
+// usual size of avatar image saved on server, unless the original file is smaller
+// than the size after resizing.
+const DefaultAvatarSize = 256

 // RandomImageSize generates and returns a random avatar image unique to input data
 // in custom size (height and width).
@@ -39,28 +43,44 @@ func RandomImageSize(size int, data []byte) (image.Image, error) {
 // RandomImage generates and returns a random avatar image unique to input data
 // in default size (height and width).
 func RandomImage(data []byte) (image.Image, error) {
-	return RandomImageSize(AvatarSize, data)
+	return RandomImageSize(DefaultAvatarSize*setting.Avatar.RenderedSizeFactor, data)
 }

-// Prepare accepts a byte slice as input, validates it contains an image of an
-// acceptable format, and crops and resizes it appropriately.
-func Prepare(data []byte) (*image.Image, error) {
-	imgCfg, _, err := image.DecodeConfig(bytes.NewReader(data))
+// processAvatarImage process the avatar image data, crop and resize it if necessary.
+// the returned data could be the original image if no processing is needed.
+func processAvatarImage(data []byte, maxOriginSize int64) ([]byte, error) {
+	imgCfg, imgType, err := image.DecodeConfig(bytes.NewReader(data))
 	if err != nil {
-		return nil, fmt.Errorf("DecodeConfig: %w", err)
+		return nil, fmt.Errorf("image.DecodeConfig: %w", err)
 	}
+
+	// for safety, only accept known types explicitly
+	if imgType != "png" && imgType != "jpeg" && imgType != "gif" && imgType != "webp" {
+		return nil, errors.New("unsupported avatar image type")
+	}
+
+	// do not process image which is too large, it would consume too much memory
 	if imgCfg.Width > setting.Avatar.MaxWidth {
-		return nil, fmt.Errorf("Image width is too large: %d > %d", imgCfg.Width, setting.Avatar.MaxWidth)
+		return nil, fmt.Errorf("image width is too large: %d > %d", imgCfg.Width, setting.Avatar.MaxWidth)
 	}
 	if imgCfg.Height > setting.Avatar.MaxHeight {
-		return nil, fmt.Errorf("Image height is too large: %d > %d", imgCfg.Height, setting.Avatar.MaxHeight)
+		return nil, fmt.Errorf("image height is too large: %d > %d", imgCfg.Height, setting.Avatar.MaxHeight)
+	}
+
+	// If the origin is small enough, just use it, then APNG could be supported,
+	// otherwise, if the image is processed later, APNG loses animation.
+	// And one more thing, webp is not fully supported, for animated webp, image.DecodeConfig works but Decode fails.
+	// So for animated webp, if the uploaded file is smaller than maxOriginSize, it will be used, if it's larger, there will be an error.
+	if len(data) < int(maxOriginSize) {
+		return data, nil
 	}

 	img, _, err := image.Decode(bytes.NewReader(data))
 	if err != nil {
-		return nil, fmt.Errorf("Decode: %w", err)
+		return nil, fmt.Errorf("image.Decode: %w", err)
 	}

+	// try to crop and resize the origin image if necessary
 	if imgCfg.Width != imgCfg.Height {
 		var newSize, ax, ay int
 		if imgCfg.Width > imgCfg.Height {
@@ -74,13 +94,33 @@ func Prepare(data []byte) (*image.Image, error) {
 		img, err = cutter.Crop(img, cutter.Config{
 			Width:  newSize,
 			Height: newSize,
-			Anchor: image.Point{ax, ay},
+			Anchor: image.Point{X: ax, Y: ay},
 		})
 		if err != nil {
 			return nil, err
 		}
 	}

-	img = resize.Resize(AvatarSize, AvatarSize, img, resize.Bilinear)
-	return &img, nil
+	targetSize := uint(DefaultAvatarSize * setting.Avatar.RenderedSizeFactor)
+	img = resize.Resize(targetSize, targetSize, img, resize.Bilinear)
+
+	// try to encode the cropped/resized image to png
+	bs := bytes.Buffer{}
+	if err = png.Encode(&bs, img); err != nil {
+		return nil, err
+	}
+	resized := bs.Bytes()
+
+	// usually the png compression is not good enough, use the original image (no cropping/resizing) if the origin is smaller
+	if len(data) <= len(resized) {
+		return data, nil
+	}
+
+	return resized, nil
+}
+
+// ProcessAvatarImage process the avatar image data, crop and resize it if necessary.
+// the returned data could be the original image if no processing is needed.
+func ProcessAvatarImage(data []byte) ([]byte, error) {
+	return processAvatarImage(data, setting.Avatar.MaxOriginSize)
 }

modules/avatar/avatar_test.go

@@ -4,6 +4,9 @@
 package avatar

 import (
+	"bytes"
+	"image"
+	"image/png"
 	"os"
 	"testing"

@@ -25,49 +28,109 @@ func Test_RandomImage(t *testing.T) {
 	assert.NoError(t, err)
 }

-func Test_PrepareWithPNG(t *testing.T) {
+func Test_ProcessAvatarPNG(t *testing.T) {
 	setting.Avatar.MaxWidth = 4096
 	setting.Avatar.MaxHeight = 4096

 	data, err := os.ReadFile("testdata/avatar.png")
 	assert.NoError(t, err)

-	imgPtr, err := Prepare(data)
+	_, err = processAvatarImage(data, 262144)
 	assert.NoError(t, err)
-
-	assert.Equal(t, 290, (*imgPtr).Bounds().Max.X)
-	assert.Equal(t, 290, (*imgPtr).Bounds().Max.Y)
 }

-func Test_PrepareWithJPEG(t *testing.T) {
+func Test_ProcessAvatarJPEG(t *testing.T) {
 	setting.Avatar.MaxWidth = 4096
 	setting.Avatar.MaxHeight = 4096

 	data, err := os.ReadFile("testdata/avatar.jpeg")
 	assert.NoError(t, err)

-	imgPtr, err := Prepare(data)
+	_, err = processAvatarImage(data, 262144)
 	assert.NoError(t, err)
-
-	assert.Equal(t, 290, (*imgPtr).Bounds().Max.X)
-	assert.Equal(t, 290, (*imgPtr).Bounds().Max.Y)
 }

-func Test_PrepareWithInvalidImage(t *testing.T) {
+func Test_ProcessAvatarInvalidData(t *testing.T) {
 	setting.Avatar.MaxWidth = 5
 	setting.Avatar.MaxHeight = 5

-	_, err := Prepare([]byte{})
-	assert.EqualError(t, err, "DecodeConfig: image: unknown format")
+	_, err := processAvatarImage([]byte{}, 12800)
+	assert.EqualError(t, err, "image.DecodeConfig: image: unknown format")
 }

-func Test_PrepareWithInvalidImageSize(t *testing.T) {
+func Test_ProcessAvatarInvalidImageSize(t *testing.T) {
 	setting.Avatar.MaxWidth = 5
 	setting.Avatar.MaxHeight = 5

 	data, err := os.ReadFile("testdata/avatar.png")
 	assert.NoError(t, err)

-	_, err = Prepare(data)
-	assert.EqualError(t, err, "Image width is too large: 10 > 5")
+	_, err = processAvatarImage(data, 12800)
+	assert.EqualError(t, err, "image width is too large: 10 > 5")
+}
+
+func Test_ProcessAvatarImage(t *testing.T) {
+	setting.Avatar.MaxWidth = 4096
+	setting.Avatar.MaxHeight = 4096
+	scaledSize := DefaultAvatarSize * setting.Avatar.RenderedSizeFactor
+
+	newImgData := func(size int, optHeight ...int) []byte {
+		width := size
+		height := size
+		if len(optHeight) == 1 {
+			height = optHeight[0]
+		}
+		img := image.NewRGBA(image.Rect(0, 0, width, height))
+		bs := bytes.Buffer{}
+		err := png.Encode(&bs, img)
+		assert.NoError(t, err)
+		return bs.Bytes()
+	}
+
+	// if origin image canvas is too large, crop and resize it
+	origin := newImgData(500, 600)
+	result, err := processAvatarImage(origin, 0)
+	assert.NoError(t, err)
+	assert.NotEqual(t, origin, result)
+	decoded, err := png.Decode(bytes.NewReader(result))
+	assert.NoError(t, err)
+	assert.EqualValues(t, scaledSize, decoded.Bounds().Max.X)
+	assert.EqualValues(t, scaledSize, decoded.Bounds().Max.Y)
+
+	// if origin image is smaller than the default size, use the origin image
+	origin = newImgData(1)
+	result, err = processAvatarImage(origin, 0)
+	assert.NoError(t, err)
+	assert.Equal(t, origin, result)
+
+	// use the origin image if the origin is smaller
+	origin = newImgData(scaledSize + 100)
+	result, err = processAvatarImage(origin, 0)
+	assert.NoError(t, err)
+	assert.Less(t, len(result), len(origin))
+
+	// still use the origin image if the origin doesn't exceed the max-origin-size
+	origin = newImgData(scaledSize + 100)
+	result, err = processAvatarImage(origin, 262144)
+	assert.NoError(t, err)
+	assert.Equal(t, origin, result)
+
+	// allow to use known image format (eg: webp) if it is small enough
+	origin, err = os.ReadFile("testdata/animated.webp")
+	assert.NoError(t, err)
+	result, err = processAvatarImage(origin, 262144)
+	assert.NoError(t, err)
+	assert.Equal(t, origin, result)
+
+	// do not support unknown image formats, eg: SVG may contain embedded JS
+	origin = []byte("<svg></svg>")
+	_, err = processAvatarImage(origin, 262144)
+	assert.ErrorContains(t, err, "image: unknown format")
+
+	// make sure the canvas size limit works
+	setting.Avatar.MaxWidth = 5
+	setting.Avatar.MaxHeight = 5
+	origin = newImgData(10)
+	_, err = processAvatarImage(origin, 262144)
+	assert.ErrorContains(t, err, "image width is too large: 10 > 5")
 }

modules/avatar/testdata/animated.webp

@@ -6,6 +6,7 @@ package repository
 import (
 	"crypto/md5"
 	"fmt"
+	"strconv"
 	"testing"
 	"time"

@@ -136,13 +137,11 @@ func TestPushCommits_AvatarLink(t *testing.T) {
 	enableGravatar(t)

 	assert.Equal(t,
-		"https://secure.gravatar.com/avatar/ab53a2911ddf9b4817ac01ddcd3d975f?d=identicon&s=84",
+		"https://secure.gravatar.com/avatar/ab53a2911ddf9b4817ac01ddcd3d975f?d=identicon&s="+strconv.Itoa(28*setting.Avatar.RenderedSizeFactor),
 		pushCommits.AvatarLink(db.DefaultContext, "[email protected]"))

 	assert.Equal(t,
-		"https://secure.gravatar.com/avatar/"+
-			fmt.Sprintf("%x", md5.Sum([]byte("[email protected]")))+
-			"?d=identicon&s=84",
+		fmt.Sprintf("https://secure.gravatar.com/avatar/%x?d=identicon&s=%d", md5.Sum([]byte("[email protected]")), 28*setting.Avatar.RenderedSizeFactor),
 		pushCommits.AvatarLink(db.DefaultContext, "[email protected]"))
 }


modules/repository/commits_test.go

@@ -3,21 +3,23 @@

 package setting

-// settings
+// Avatar settings
+
 var (
-	// Picture settings
 	Avatar = struct {
 		Storage

 		MaxWidth           int
 		MaxHeight          int
 		MaxFileSize        int64
+		MaxOriginSize      int64
 		RenderedSizeFactor int
 	}{
 		MaxWidth:           4096,
-		MaxHeight:          3072,
+		MaxHeight:          4096,
 		MaxFileSize:        1048576,
-		RenderedSizeFactor: 3,
+		MaxOriginSize:      262144,
+		RenderedSizeFactor: 2,
 	}

 	GravatarSource        string
@@ -44,9 +46,10 @@ func loadPictureFrom(rootCfg ConfigProvider) {
 	Avatar.Storage = getStorage(rootCfg, "avatars", storageType, avatarSec)

 	Avatar.MaxWidth = sec.Key("AVATAR_MAX_WIDTH").MustInt(4096)
-	Avatar.MaxHeight = sec.Key("AVATAR_MAX_HEIGHT").MustInt(3072)
+	Avatar.MaxHeight = sec.Key("AVATAR_MAX_HEIGHT").MustInt(4096)
 	Avatar.MaxFileSize = sec.Key("AVATAR_MAX_FILE_SIZE").MustInt64(1048576)
-	Avatar.RenderedSizeFactor = sec.Key("AVATAR_RENDERED_SIZE_FACTOR").MustInt(3)
+	Avatar.MaxOriginSize = sec.Key("AVATAR_MAX_ORIGIN_SIZE").MustInt64(262144)
+	Avatar.RenderedSizeFactor = sec.Key("AVATAR_RENDERED_SIZE_FACTOR").MustInt(2)

 	switch source := sec.Key("GRAVATAR_SOURCE").MustString("gravatar"); source {
 	case "duoshuo":
@@ -94,5 +97,5 @@ func loadRepoAvatarFrom(rootCfg ConfigProvider) {
 	RepoAvatar.Storage = getStorage(rootCfg, "repo-avatars", storageType, repoAvatarSec)

 	RepoAvatar.Fallback = sec.Key("REPOSITORY_AVATAR_FALLBACK").MustString("none")
-	RepoAvatar.FallbackImage = sec.Key("REPOSITORY_AVATAR_FALLBACK_IMAGE").MustString("/assets/img/repo_default.png")
+	RepoAvatar.FallbackImage = sec.Key("REPOSITORY_AVATAR_FALLBACK_IMAGE").MustString(AppSubURL + "/assets/img/repo_default.png")
 }
