Immutable AWS Backup Terraform module

An open-source Terraform module to deploy and orchestrate AWS Backup for creating fully immutable backups within an AWS Organization.

• Manages the deployment of Backup Vaults to member accounts using CloudFormation StackSets.
• Allows for targetted deployments to specific Organizations Units (OUs) and prevents cross-talk between deployments.
• Stores backups in a central AWS account to protect against account closure or suspension.
• Protects against KMS Key deletion through using AWS Managed and AWS Owned keys.
• Supports Logically Air Gapped Vaults, with logic to use them only for supported resource types.
• (Optional) Resource selection using tags.
• Implements AWS best practice and guidance for security and cost.
• Simplifies the process of configuring AWS Backup.

See Why use this module? to learn more about the issues this module solves and how it works.

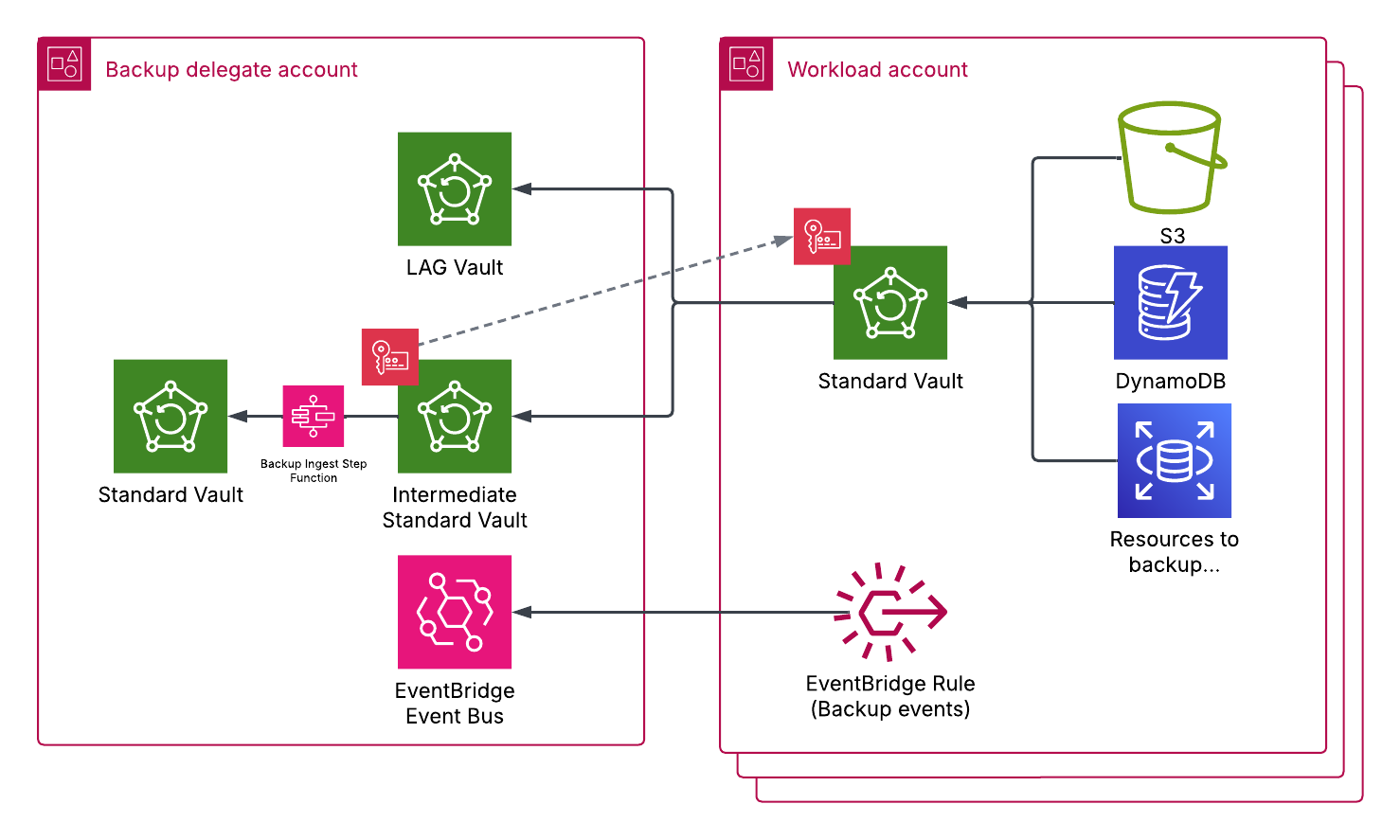

Architecture and deployment

The module is designed to be deployed in a dedicated account within an AWS Organization, this account must be delegated certain abilities for the module to function. See our Architecture documentation for a detailed explanation of the architecture and how the module works.

Example Usage

module "immutable_aws_backup" {
  source = "nationalarchives/immutable-aws-backup/aws"
  # It's recommended to explicitly constrain the version number to avoid unexpected or unwanted changes.

  central_account_resource_name_prefix = "immutable-aws-backup-"
  member_account_resource_name_prefix  = "orgdeploy-immutable-aws-backup-"

  deployments = {
    "website-service" = {
      targets            = ["ou-abcd-defghijk"]
      min_retention_days = 7
      max_retention_days = 90
      backup_tag_key     = "BackupPlan"
      plans = {
        "GFS-7-28-90" : {
          require_plan_name_resource_tag = true
          use_logically_air_gapped_vault = false
          rules = [
            {
              name                = "daily",
              schedule_expression = "cron(0 3 ? * * *)" # Every day at 3am UTC
              delete_after_days   = 7
            },
            {
              name                = "weekly",
              schedule_expression = "cron(0 3 ? * 2 *)" # Every Monday at 3am UTC
              delete_after_days   = 28
            },
            {
              name                = "monthly",
              schedule_expression = "cron(0 3 1 * ? *)" # Every 1st of the month at 3am UTC
              delete_after_days   = 90
            }
          ]
        }
      }
    }
  }
}
